Diameter of reserved bottom hole for self-tapping screws in plastic products
Determining the diameter of the reserved bottom hole for self-tapping screws in plastic products is a key step in ensuring connection strength and reliability, and directly affects the assembly quality and performance of plastic products and other components. Self-tapping screws are screws that do not require pre-tapping. They use their own threads to tap out threads in the reserved bottom hole to achieve connection. For plastic products, since their material properties are different from those of metals and they have certain plasticity and elasticity, the size of the reserved bottom hole diameter will affect the quality of thread formation, connection strength, and the stress state of the plastic matrix. If the bottom hole diameter is too small, excessive radial force will be generated when the self-tapping screw is screwed in, causing the plastic matrix to crack; if the bottom hole diameter is too large, no effective thread can be formed, the connection strength is insufficient, and loosening is likely to occur. Therefore, reasonably determining the reserved bottom hole diameter is crucial to ensuring the connection reliability of plastic products.
The material properties of plastic products are the primary factor in determining the diameter of the reserved bottom hole for self-tapping screws. Different plastic materials have different strengths, hardness, toughness, and plasticity, and these properties affect the force applied during self-tapping screw tapping and the formation of threads. For example, hard and brittle plastics such as polystyrene (PS) and polyvinyl chloride (PVC) have poor impact resistance, and the reserved bottom hole diameter should be slightly larger to reduce the radial force during screwing and avoid cracking; while plastics with better toughness, such as polyethylene (PE) and polypropylene (PP), have certain elasticity and plasticity, and the reserved bottom hole diameter can be appropriately smaller to ensure sufficient connection strength. In addition, the strength of the plastic will also affect the choice of bottom hole diameter. Plastics with higher strength, such as polyamide (PA) and polycarbonate (PC), can use a relatively small bottom hole diameter, while plastics with lower strength require a larger bottom hole diameter.
The size and type of self-tapping screws are also important factors in determining the diameter of the reserved base hole. The dimensions of self-tapping screws primarily include nominal diameter, thread pitch, and length. Different screw sizes require different base hole diameters. Generally speaking, screws with larger nominal diameters require larger base hole diameters to accommodate the screw threads and ensure sufficient thread engagement. The type of self-tapping screw also influences the choice of base hole diameter. Common types of self-tapping screws include standard self-tapping screws, self-drilling self-tapping screws, and triangular thread self-tapping screws. Due to their unique thread shape, triangular thread self-tapping screws offer superior cutting performance and connection strength, allowing for a slightly larger base hole diameter than standard self-tapping screws. For example, a standard self-tapping screw with a nominal diameter of 4mm typically requires a base hole diameter of 2.8-3.2mm in a polypropylene plastic part, while a triangular thread self-tapping screw may require a base hole diameter of 3.0-3.4mm.

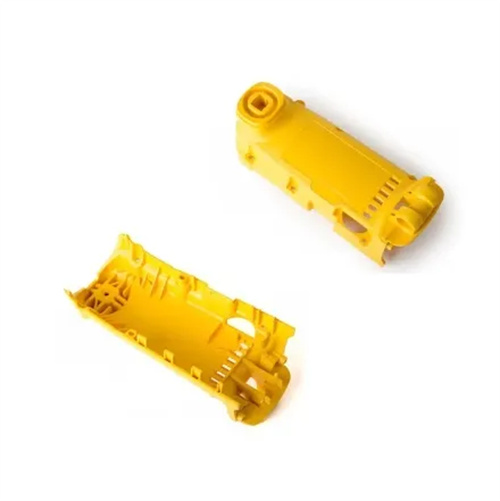

The wall thickness and structure of plastic products also have a significant impact on the determination of the reserved bottom hole diameter. If the wall thickness of the plastic product is thin, a reserved bottom hole diameter that is too large will result in insufficient remaining wall thickness, affecting the connection strength and the integrity of the plastic matrix; while a bottom hole diameter that is too small will concentrate the stress during screwing on the thinner wall, which can easily cause cracking. Therefore, for thin-walled plastic parts, it is necessary to reasonably select the bottom hole diameter while ensuring the connection strength. Usually, a smaller bottom hole diameter can be used, and the length of the screw can be appropriately increased to improve the reliability of the connection. For plastic products with complex structures, such as those with reinforcing ribs, bosses, etc., the location of the reserved bottom hole should avoid these structures. At the same time, the selection of the bottom hole diameter should take into account the impact of the surrounding structure on the strength of the plastic matrix to avoid weakening the overall strength of the plastic part due to the opening of the bottom hole.
In actual production, determining the diameter of the reserved hole for self-tapping screws in plastic products typically requires reference to relevant standards and empirical data, as well as verification through testing. Both international and domestic standards exist for this purpose, such as ISO and GB. These standards provide recommended hole diameter ranges based on the type of plastic material, screw size, and type. For example, GB/T 14210-1993, “Mounting Holes for Polyvinyl Chloride (PVC) Plastic Doors and Windows Hardware,” specifically specifies the diameter of the reserved hole for self-tapping screws in PVC plastic doors and windows. Beyond these reference standards, actual production testing is also necessary. By performing screw-in tests using holes of varying diameters on plastic parts of the same material and structure, the optimal hole diameter can be determined, including testing to determine connection strength and observing for cracking in the plastic substrate. Furthermore, methods such as finite element analysis can be used to simulate the stresses acting on the plastic substrate during screw-in, predicting potential problems and providing a theoretical basis for determining the hole diameter.
With the continuous expansion of the application scope of plastic products and the continuous development of self-tapping screw technology, the method for determining the reserved bottom hole diameter is also constantly being optimized. The emergence of new plastic materials such as fiber-reinforced composites has put forward new requirements for the determination of the bottom hole diameter, and it is necessary to consider the influence of factors such as fiber orientation and content on the connection strength. At the same time, the application of intelligent design software has also facilitated the determination of the bottom hole diameter. By inputting information such as plastic material properties, screw parameters, and plastic part structure, the software can automatically calculate the recommended bottom hole diameter and perform virtual simulation verification, thereby improving design efficiency and accuracy. In the future, with the advancement of materials science and manufacturing technology, the determination of the reserved bottom hole diameter of self-tapping screws for plastic products will be more accurate and scientific, providing stronger guarantees for the connection reliability of plastic products .
